Why DDS is Essential for the Tactical Edge


An IT architecture for network-centric warfare is outlined, consisting of cloudlets, edge computing, and the data distribution service (DDS) standard.

The concept of network-centric warfare was pioneered by the United States, but has been subsequently adopted as military doctrine by other countries worldwide. The idea is that battlefield advantage can be gained through a network of robustly networked forces to improve information sharing, which in turn improves situational awareness and decision-making responsiveness, dramatically improving mission effectiveness.

The U.S. is developing the Global Information Grid (GIG) as the primary communication framework to support network-centric warfare operations. The GIG is a globally interconnected, end-to-end set of information capabilities for sensing, collecting, processing, storing, disseminating and managing information on demand to warfighters, policy makers and support personnel.

The military strategist and U.S. Air Force Col. John Boyd developed the decision cycle of Observe, Orient, Decide and Act (OODA loop). The idea being that an entity, whether an individual or an organization, can process this cycle quickly, observing and reacting to unfolding events more rapidly than an opponent and thereby “get inside” the opponent’s decision cycle and gain the advantage. Fundamental to the effectiveness of the decision cycle and embraced by the doctrine of network-centric warfare is being able to deliver the right data, at the right place at the right time. This is key to reducing the time to make good command decisions and gain advantage.

In a network-centric environment consisting of a geographically dispersed and interconnected system of systems, the collection, storage, processing and dissemination of information represents a major technical challenge. The use of cloud and edge computing in a military context, combined with use of real-time data connectivity enabled by the DDS standard, offers great potential to effectively address these hurdles.

Another set of concerns relate to the sheer volume, variety and velocity of data produced by network-centric military applications that has grown exponentially in the past decade. This poses many challenges with respect to how to manage, process and share the data in systems containing edge networks, limited computing resources, limited network bandwidth and where connectivity to centralized command and control systems is not always guaranteed.

Cloud computing in defense

To support future network-centric warfare systems, the U.S. Department of Defense has started a number of initiatives aimed at achieving improved mission and cost effectiveness. One of the key initiatives is to accelerate the adoption of cloud computing.

The objective is to move from a state of duplication, cumbersome and costly application silos to a much more cost effective and agile service environment that can rapidly respond to changing mission requirements. Cloud computing can enhance battlefield mobility through device and location independence while providing on-demand secure global access to mission data and enterprise services. It’s worth pointing out that the DoD has specific requirements for the adoption of cloud computing technologies in areas such as cybersecurity, continuity of operations, information assurance and resilience that both government and commercial providers must comply with.

Cloud computing relies on applications, storage and computing that reside on networks with powerful servers and not necessarily on local machines that can have far less computational power. Cloud computing enables thin clients such as a mobile device to access the computing resources of servers in a cloud data center.

The cloud computing pattern works effectively until you get to the tactical edge, such as on the battlefield where mission requirements are dynamic and fast changing, and where the need for computing power is great but network communications are much more challenging. Specifically, due to intermittent connectivity with the core networks, limited network bandwidth and high network latency.

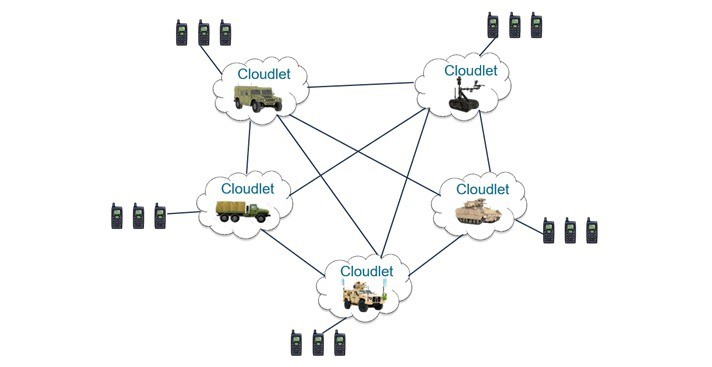

network-centric warfare cloudlets

Tactical cloudlets. Image by PrismTech Vortex.

Edge computing and tactical cloudlets

Cloudlets address the limitations of cloud computing at the tactical edge. Cloudlets consist of servers and communication equipment that are deployed on the battlefield, typically hosted on a vehicle or other platforms in the proximity of the troops. They offer computational offload capabilities to mobile forces, forward data staging for a mission, provide data filtering for streams intended for dismounted users, and also are a collection point for data heading to the cloud or other battlefield edge nodes.

Tactical cloudlets can continue to be used even if disconnected from the core network. The offloading of computational tasks from resource-poor mobile devices to more powerful machines in the vicinity is termed cyber foraging.

The key elements of the cloudlet architecture include:

  • The servers are forward deployed, for example, on the battlefield much closer to the troops.
  • The servers are discoverable, which is fundamental to how users access the services they provide. Users are able to discover the services they require at runtime without knowing the exact IP address of these applications in advance.
  • The servers are typically virtual machine based so that computational resources and applications can be provisioned on demand.
  • They can operate in a fully disconnected mode, with connection to the cloud only required in some types of provisioning scenario, for example, if VMs and apps hosted in local cloudlet repositories need to be updated because newer versions have been made available.

Fundamental to supporting tactical edge networks using cloudlets are the need for a discovery service, used in combination with a provisioning and execution infrastructure for virtualized servers and applications.

Another extremely important aspect of these edge-based tactical networks is the ability to share data in real time between a dynamic network of ad-hoc nodes that may come and go over time. To support a shared operational picture and effective decision making, a peer-to-peer communication fabric that also removes singles points of failure is key.

The need for network-centric military systems to efficiently offload computational workload at the edge, to process data locally and to share information with nodes and users in close proximity has many synergies with the requirements for business-critical Internet of Things (IoT) systems, particularly in an industrial context. For example, cloud computing is already pervasive in M2M industrial applications and where similar challenges also exist with the limitations of cloud-centric architectures in the IoT. This is also driving the need to deploy computing resources much closer the data sources, for localized processing and decision making.

Conceptually, the tactical cloud architecture shares many similarities to the edge computing concept, also commonly referred to as fog computing in the Industrial IoT world, and which is supported by international standard bodies such as the OpenFog Consortium and also ETSI, who are developing Mobile Edge Computing (MEC) architecture for the mobile telecommunications industry. The important point being that technologies that are being developed for the IoT and for network-centric tactical edge systems have massive synergy and dual use. This means that IoT technologies developed in the commercial world are capable of supporting initiatives such as the DoD’s third offset strategy with its focus on increased use of COTS technologies where applicable.

Critical software for the tactical edge

When the GIG was originally proposed, the distributed technologies of the day, such as CORBA and COM/DCOM, were not particularly well-suited to its implementation. The request-and-reply style of interaction supported by technologies such as CORBA resulted in tightly coupled systems that introduced single points of failure and bottlenecks, which in turn led to systems that were difficult to scale, prone to faults and had performance issues.

The Data Distribution Service for Real-time Systems standard (DDS) was developed by the Object Management Group and its member companies to address the limitations of existing client-server technologies for addressing the communication and real-time data sharing challenges of the GIG.

DDS was introduced as a OMG standard in 2004 and continues to evolve to this day, with recent additions to the set of standards, including support for a comprehensive pluggable security framework, support for extensible data types and support for RPC-style interactions. DDS defines an interoperable wire protocol referred to as DDSI and a set of language-independent, data-centric APIs that support a publish and subscribe interaction style. DDS provides interoperable, QoS controlled real-time data sharing for distributed systems.

DDS has recently been recommended as a core communication standard as part of the Industrial Internet Consortium’s (IIC) Reference Architecture. DDS provides a Distributed Data Space abstraction where nodes can asynchronously read and write data into the data space regardless of their location. Readers and writers are decoupled in time and space and the data space is completely decentralized, reducing single points of failure. Data sharing interactions are controlled by a rich set of QoS polices. The built-in discovery mechanism allows applications to easily discover each other regardless of location and network topology.

commander of the soldiers paves the route on an electronic tableUsing DDS for network-centric warfare

So why DDS for network-centric military systems? Just to reiterate the point again, DDS is a standard designed for network centric systems and with its original focus very much on the aerospace and defense community where it has been very successful.

DDS is a platform-independent technology that can run on lots of different platforms including servers, desktops, mobile platforms, embedded systems, sensors and even web browsers. Its supports low-latency, predictable, secure, fault-tolerant and interoperable communications.

The DDS automatic discovery features allow applications to easily find each other regardless of location. This feature makes it an excellent technology for implementing an edge network using cloudlets. It also provides a decentralized architecture with support for peer-to-peer communications. Again, this is an important feature for supporting network-centric edge networks.
