Big Benefits Seen from Regional Smart Grid Projects

smart grid projects

One of the largest smart grid demonstration projects in the United States shows that utilities in the Pacific Northwest could see big benefits from smart grid projects. Those benefits include improved outage detection/restoration and wind forecasting, as well as distribution savings.

Name of Organization: Pacific Northwest Smart Grid Demonstration Project

Industry: Electric utility

Location: Richland, WA USA

Business Opportunity or Challenge:

What if consumers could manage their energy consumption based on up-to-the minute data on energy costs? This could have a significant impact on reducing demand during peak periods and lowering overall energy consumption.

The ability to deliver real-time energy data is at the core of a recent effort coordinated by Battelle. The research institute spearheaded an experiment in electric power conservation in the U.S. Pacific Northwest that seeks to help reduce the region’s carbon footprint, smooth out peaks in electricity use, and better integrate intermittent renewable resources — such as solar and wind power — to help control costs. The project provides unprecedented insight into the cost of electricity at any point in time, relaying information about varying demand levels to support informed consumption decisions

Energy producers and delivery providers are rapidly moving toward placing smart sensors and meters on production, transmission and distribution systems to get granular, real-time data about the current state of faults and load. These “smart grid” investments provide consumers with near real-time information about their energy use and allow them to manage their usage based on both need and cost. For example, most residential water heaters turn on when the water temperature reaches a certain level—even if the homeowner isn’t at home, and electricity demand is high. With these smart systems, the technology can assess in real time the consumer’s requirements against current and expected energy costs over a 72-hour period and determine, based on both price and need, the best time to reheat the water.

The opportunity for savings is huge, but the technology is new, and utility providers are grappling to understand which smart grid technologies will provide the greatest return on investment.

How This Business Opportunity or Challenge Was Met:

Battelle’s five-year regional pilot for the Pacific Northwest deployed a number of smart grid projects: smart meters, automated control of power distribution, and other intelligent energy technologies to help improve energy efficiency and potentially reduce power costs.

The project evaluated 55 different technologies, many of which showed they can reduce energy use and possibly also cut power bills. The Pacific Northwest Smart Grid Demonstration Project was a five-year, $178-million research project that included 11 utilities, the Bonneville Power Administration, two universities and multiple technology companies in five Northwest states: Washington, Oregon, Idaho, Montana and Wyoming. The project has been funded through the U.S. Department of Energy’s Office of Electricity Delivery and Energy Reliability, and through participant-provided matching funds.

The project is helping assess the viability of one smart grid technique called transactive control.

“Transactive control is an incentive and feedback signal that helps coordinate smart grid resources,” says project director Ronald Melton, PhD. “Right now, people tend to worry about electricity usage when they get their bill and realize that they’ve spent a hundred dollars more than they expected to. This project will engage residential and other responsive assets throughout the power system to help optimize the system and better integrate renewable resources.”

Transactive control, initially developed by the Pacific Northwest National Laboratory, involves automatic, electronic transactions between energy providers and users about whether or not to sell or buy power. These transactions are designed to improve energy efficiency and reliability, reduce power costs and enhance renewable energy use.

Battelle is working with approximately 60,000 metered customers to implement transactive control technology. On the customer side, the project entails the installation of smart meters and in-home systems that empower consumers to voluntarily reduce energy use and save money. At the power source, a transactive control signal contains information about what power is available, at what price, and what power is needed by end users. This signal moves through the system, incentivizing the use and movement of power.

“Every five minutes, the system sends signals that communicate the cost of delivering power to specific locations, allowing loads and distributed energy resources to react to price incentives,” says Melton. “Data for the signal originates at the power generators and is propagated downstream through a network, following the flow of power and corresponding to physical locations in the electrical system called nodes. At each node in the system, a decision is made to increase the incentive signal value if less electric load is needed below that point, or decrease the incentive signal value if more electric load is needed. At the destination or end-use points, information about energy use is accumulated and forwarded to the source.”

This two-way communication system significantly increases opportunities for the region to optimize the use of resources, such as renewable energy, and helps the system meet operational objectives, such as reliability.

To test the concept, the project used transactive signals that represented the predicted price and availability of power in the present and several days into the future. The signals were updated every five minutes and sent to participating utilities. When transactive signals predicted peak power demand, and therefore also high costs, the project’s smart grid technologies were designed to reduce power use.

To implement this two-way communication between consumers and utility providers, Battelle created an infrastructure that facilitates two-way data flow and provides the computing power capable of continuously processing large amounts of data. Battelle is using IBM System x86 servers and IBM InfoSphere Streams software to ease streaming of data.

Other technology partners for the PNW Smart Grid Demostration Project included Vaisala (previously 3TIER), which forecasts solar and wind production; QualityLogic, which developed interoperability tests for transactive controls; Alstom Grid, which provided software for power systems forecasting; and IBM Netezza, which specializes in data warehousing.

Measurable/Quantifiable and “Soft” Benefits from This Initiative

The degree of savings varied with each technology and test location:

  • Analysis showed the transactive signals would have correctly advised smart grid equipment to alter their operations during two critical moments on the actual regional grid. An unexpected outage at a nuclear power plant in Washington state on Feb. 5, 2014, when the plant dropped to less than half its normal generating capacity. In addition, the transactive controls highlighted a sudden increase in winds on Feb. 15, 2014, which peaked wind power generation at 2,884 Megawatts.
  • Smart meters with remote capabilities let Avista Utilities immediately start and stop electric service in Pullman, Washington, which the utility reported saved time for its customers and could both eliminate 2,714 service calls in a year and save about $235,000 annually. Also, voltage controls reduced Avista’s distribution system voltage by 2.1 percent, which is expected to translate into about 7.8 Gigawatt-hours of annual energy savings and $500,000 in reduced annual costs for its Pullman feeder distribution power lines.
  • A 5-megawatt, 1.25-megawatt-hour battery installed in Salem, Oregon, could save Portland General Electric up to $146,000 annually by providing an alternative power source during periods of extreme peak power demand up to 300 times a year.
  • NorthWestern Energy determined the fault detection, isolation and restoration system it installed significantly reduced two power outages. A June 2013 outage in Helena, Montana, lasted just 51 seconds for customers served by a power feeder line connected to the fault detection system, while customers served by another line were in the dark for 119 minutes. Meanwhile, Avista reported the fault detection, isolation and restoration system and other reliability enhancements it installed led to an annual average of 17 percent fewer outages and more than 12 percent shorter outages, as well as 353,336 avoided outage minutes between August 2013 and December 2014.
  • Idaho Falls Power anecdotally reported it could have cut fewer services for a required power reduction during a December 2013 cold snap if it had smart grid technologies installed throughout its territory.
smart grid projects

University of Washington’s Energy Dashboard

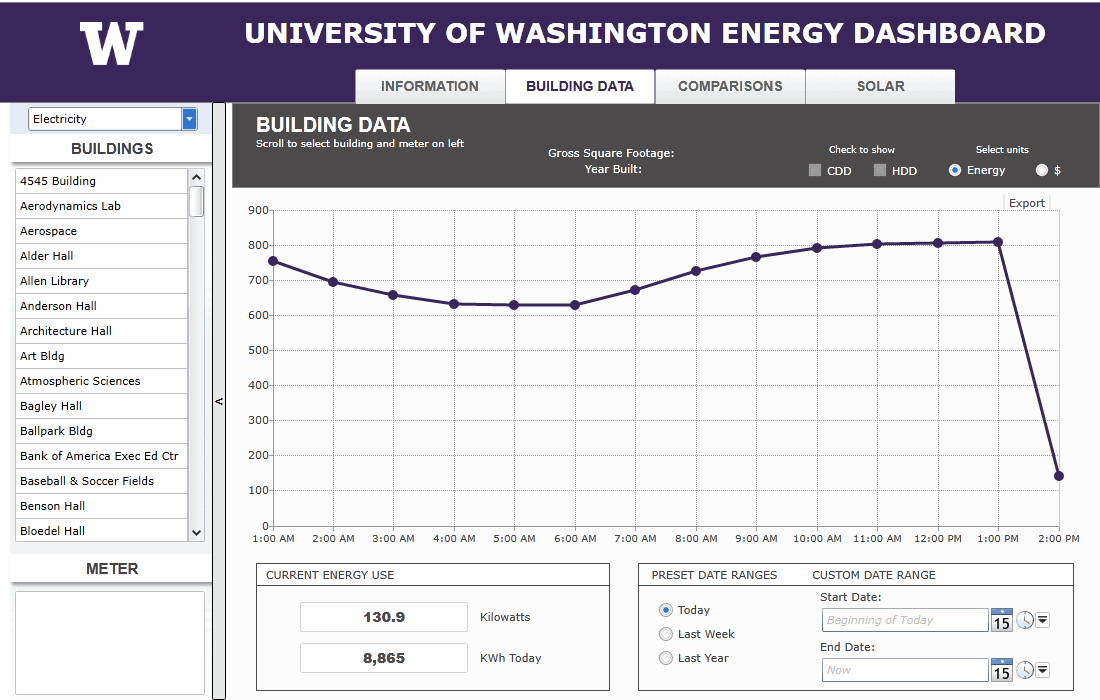

  • Before the demonstration project, the University of Washington had just seven meters on its Seattle campus to monitor energy use. Now there are more than 200 smart meters acquiring real-time data about energy consumption every five to 15 minutes, which is displayed on its website. The UW Energy Dashboard was created to provide current information and visualizations about building energy consumption and campus solar energy generation. The tool also provided consumption/ generation info for the current day, the past week, and past years. In addition to UW buildings staff, the website is available to any member of the public who is interested in the information. The demonstration project was not able to identify a method to separately determine the impact from real-time energy information using the data supplied by UW. The university calls it “a change in UW’s relationship with electricity.”
  • Real-world data feeds were collected for regional wind forecasts from Vaisala (previously 3TIER), and for power system data (including load forecast, generation and transmission schedules) from the Bonneville Power Administration. The company applied its powerful analytical engine to the data and derived forward costs of generated energy and predicted regional energy flow. Such an “informed simulation” predicts, for a four-day period, how the system would behave if generation is dispatched to meet the load and respect transmission constraints at the lowest cost.

Smart Grid: Looking Ahead

Though the demonstration project has come to a close, regional and national smart grid efforts are ongoing. For example, several project participants are continuing smart grid programs on their own: Idaho Falls Power plans to implement conservation voltage reduction throughout its entire power distribution system. Flathead Electric in Montana will install 1,000 residential and small business water heater load controls annually during the next five years.

Avista Utilities will install voltage controls and fault detection, isolation and restoration technologies throughout its service territory and start installing smart meters for its Washington customers in 2016

New projects are also being spearheaded by state and federal leaders. The Washington State Department of Commerce and the Department of Energy’s Office of Electricity Delivery and Energy Reliability and Office of Energy Efficiency and Renewable Energy are funding smart grid projects through the state’s Clean Energy Funds program. And DOE has launched the Grid Modernization Laboratory Consortium to bring together leading experts and resources to collaborate on modernizing the national grid.

(Sources: IBM, Battelle, Pacific Northwest Smart Grid Demonstration Project)
